제품 상세 정보:
|
| 강조하다: | 0.38kW 물 냉각 Fan,팬을 냉각시키는 9000m3/h 물,9000m3/h 증발에 의한 냉각은 펼쳐집니다 |
||
|---|---|---|---|

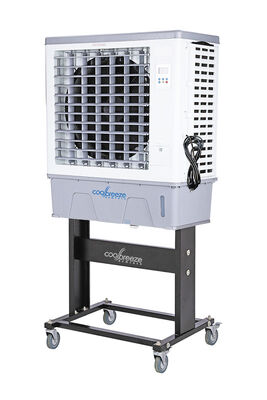

KCoolVent Water Cooling Fan, Airflow 9,000 M3/H,5300CFM, Power 0.38kW, Cooling Restaurents Coffee Bar
| Factory Model | Power (kW) | Air Flow (m3/h) |
Specification & Features | Weight, Size & Loading quantity |
| SCF-90SYH 60L |
0.38kW 50Hz 0.42kW 60Hz |
9,000 ㎥/h 5,301 CFM |
Product size: | |
| Power / current: 0.38kW (50Hz) | 900*480*2100mm | |||
| Power / current: 0.42kW (60Hz) | Packing dimension: | |||
| Voltge / Frequency 220-240V / 50~60Hz | 91*49*107cm (main box) | |||
| Motor class Grade F, IP44, copper wire motor | 110*50*13cm (stand box) | |||
| Plastic 4-blade fan / Axial-flow | NW,/GW.: 44/47 KG | |||
| LCD panel & remote control | 20'HQ: 58pcs | |||
| 40'HQ:134pcs | ||||
| 3 wind speed-High / Mid / Low | ||||

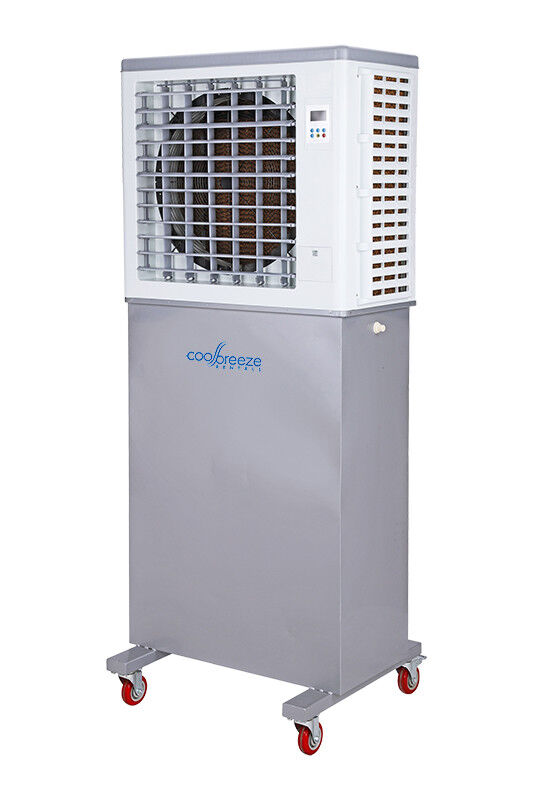

| SCF-90SYHQ 300L |
0.38kW 50Hz 0.42kW 60Hz |
9,000 ㎥/h 5,301 CFM |
Noise level <= 65dB(A) | Product size: |
| Size of air outlet: 600*640mm | 900*700*2100mm | |||
| Applicable area(㎡) 50-65 m² | Packing dimension: | |||
| Air delivery distance 13 meters | 91*700*2200cm | |||
| carton box | ||||
| NW,/GW.: 60/63 KG | ||||
| 1) Plastic water tank capacity 60, or stainless | 20'HQ: 28pcs | |||
| steel #304 water tank capacity 300 liters | 40'HQ: 56pcs | |||
| 2) 3-side honeycomb cooling pad for more cooling | ||||
| SCF-90SY 60L |
0.38kW 50Hz 0.42kW 60Hz |
9,000 ㎥/h 5,301 CFM |
3) 3 wind speed-High / Mid / Low | Product size: |
| 4) Effective area 50-65 sqm. | 900*480*1680mm | |||
| 5) 24 hours timer off | Packing dimension: | |||
| 6) With auto water inlet for continuous water supply | 91*49*107cm (main box) | |||
| 7) Automatic swing vertical louvers | 78*43*13cm (stand box) | |||
| 8) Floor stand | NW/GW.: 42/45 KG | |||
| 9) With 4inch caster wheels with lock | 20'HQ: 58pcs | |||
| 40'HQ:134pcs | ||||
